Description

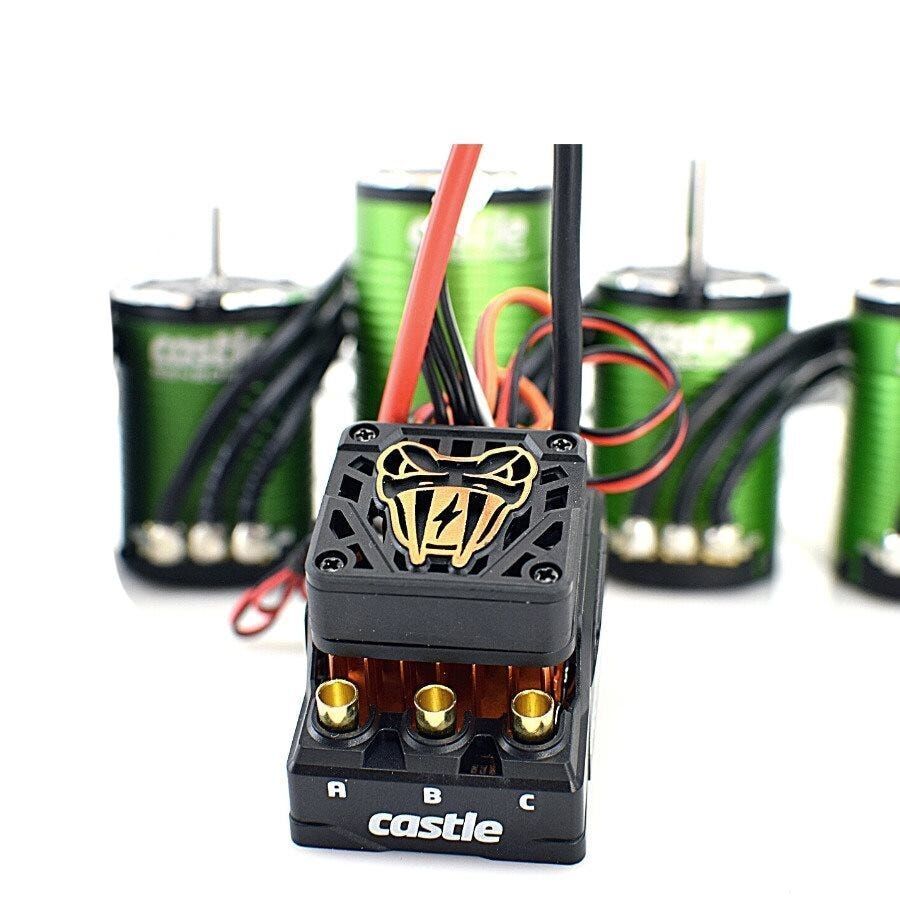

Castle Creations Copperhead 10 4S Brushless Sensored ESC with 1410-3800kv 5mm Shaft Motor, 010-0166-11

Features

Input Voltage Range for 1410-3800Kv 5mm Shaft Combo : 2s-3s LiPo
SMARTSENSE™, SENSORED ONLY and BRUSHED Running Modes
Selectable 5.5V or 7.5V (6A peak) internal BEC (Battery Eliminator Circuit)
CRYO-DRIVE™ Technology minimizes the amount of time the ESC’s electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
ESC is housed in a durable injection moulded case and potted in WATERPROOF epoxy to protect the electronics and promote efficient heat transfer
30mm removable fan and DUAL USE FAN GUARD
Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters
AUDIBLE ALERTS for easy diagnosis of common issues such as motor-over-temperature and low-voltage cut-off
Convenient TRANSMITTER PROGRAMMING for six common adjustable settings including cut-off voltage and drag brake
DATA LOGGING LITE* captures and records performance data from your vehicle to maximize performance and battery life. (Battery Voltage Battery Ripple, Controller temp, Motor RPM, Motor Temp)
SMARTSENSE™ uses the motor’s sensors at start-up to provide cog-free starts, excellent torque and low-speed drivability. Once the motor is turning, the ESC seamlessly transitions to Castle’s ultra-efficient sensorless mode
CASTLE LINK USB programming kit (coupon included with purchase)
Optional smartphone-based programming with the B-LINK™ BLUETOOTH ADAPTER (sold separately) and Castle Link App available on Google Play or Apple App Store
