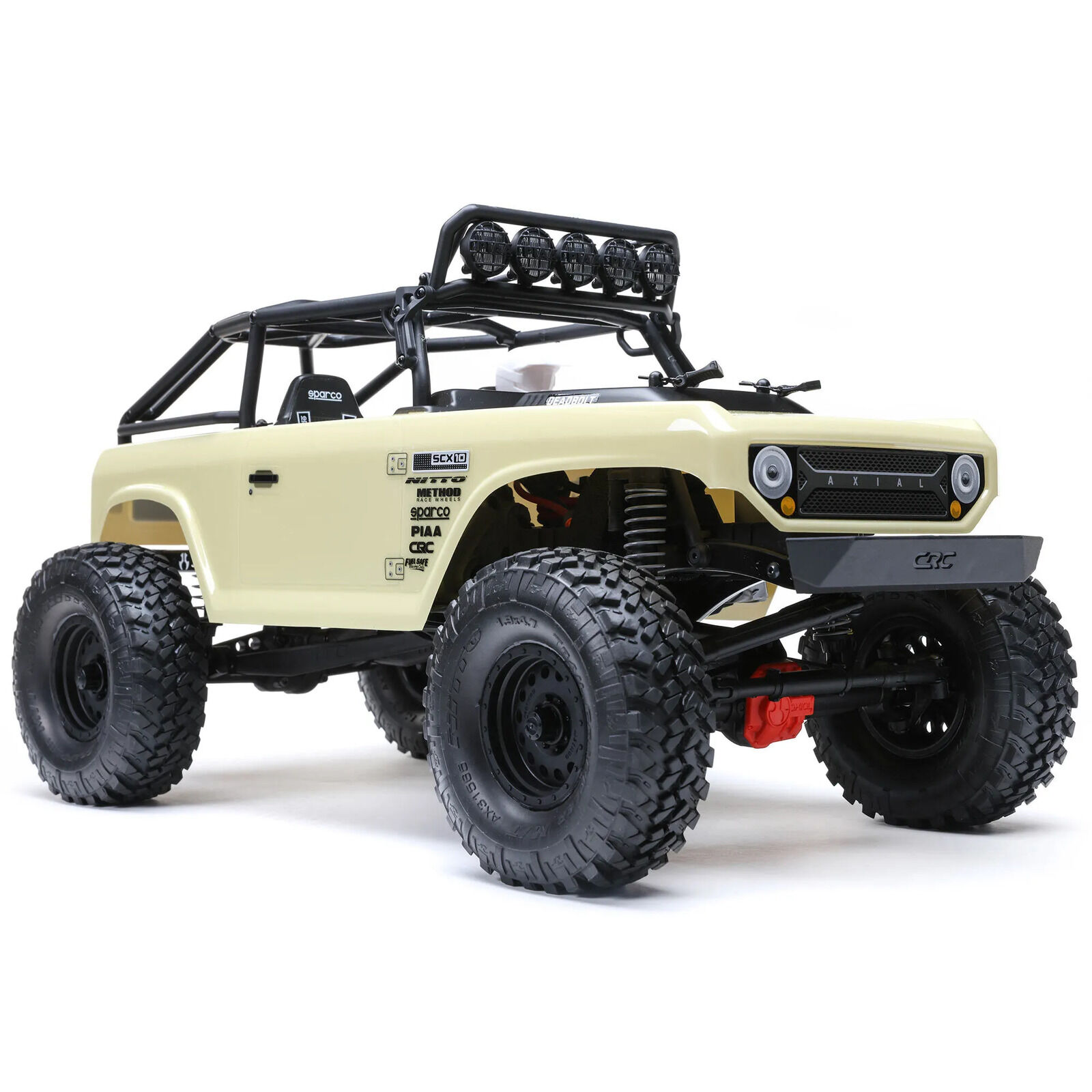

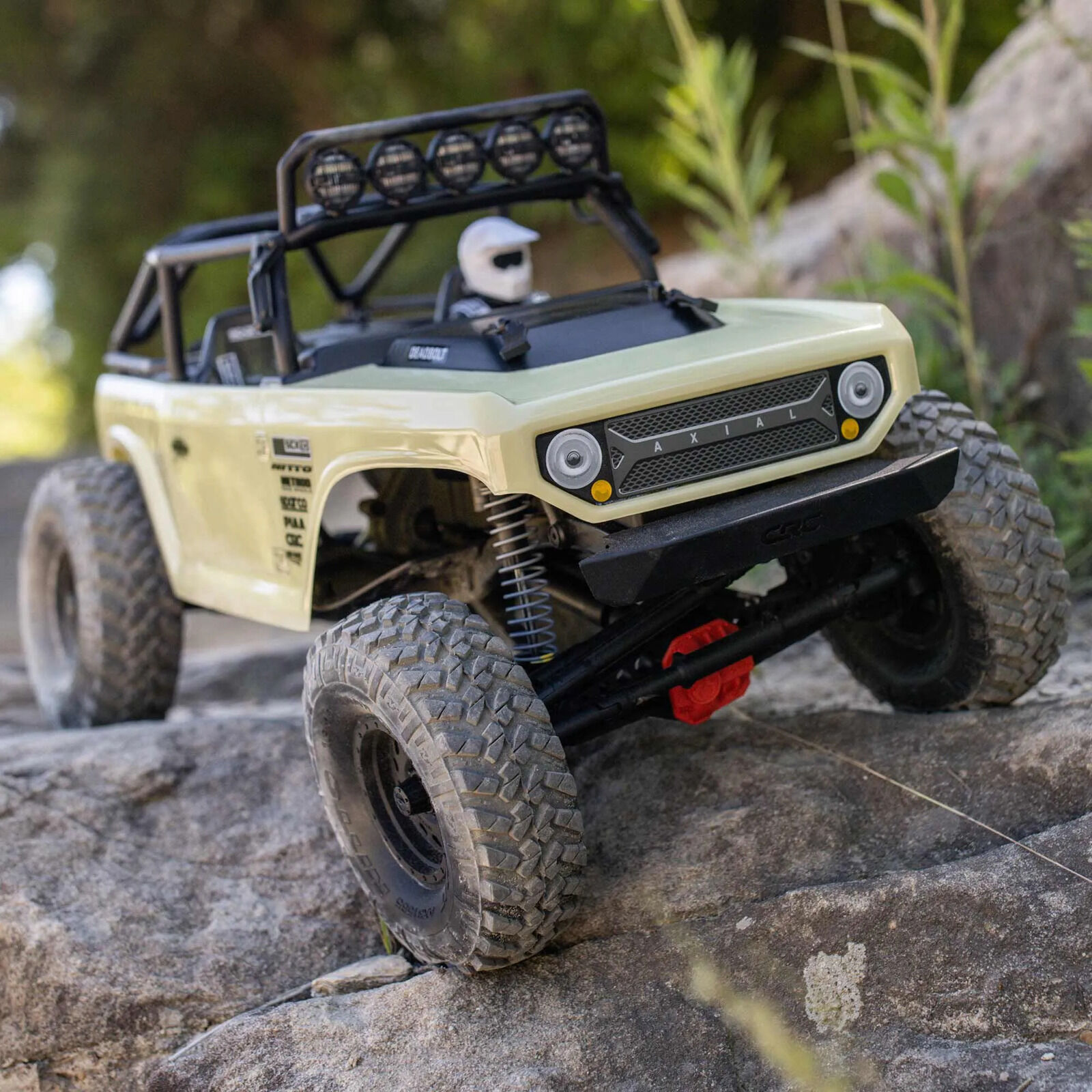

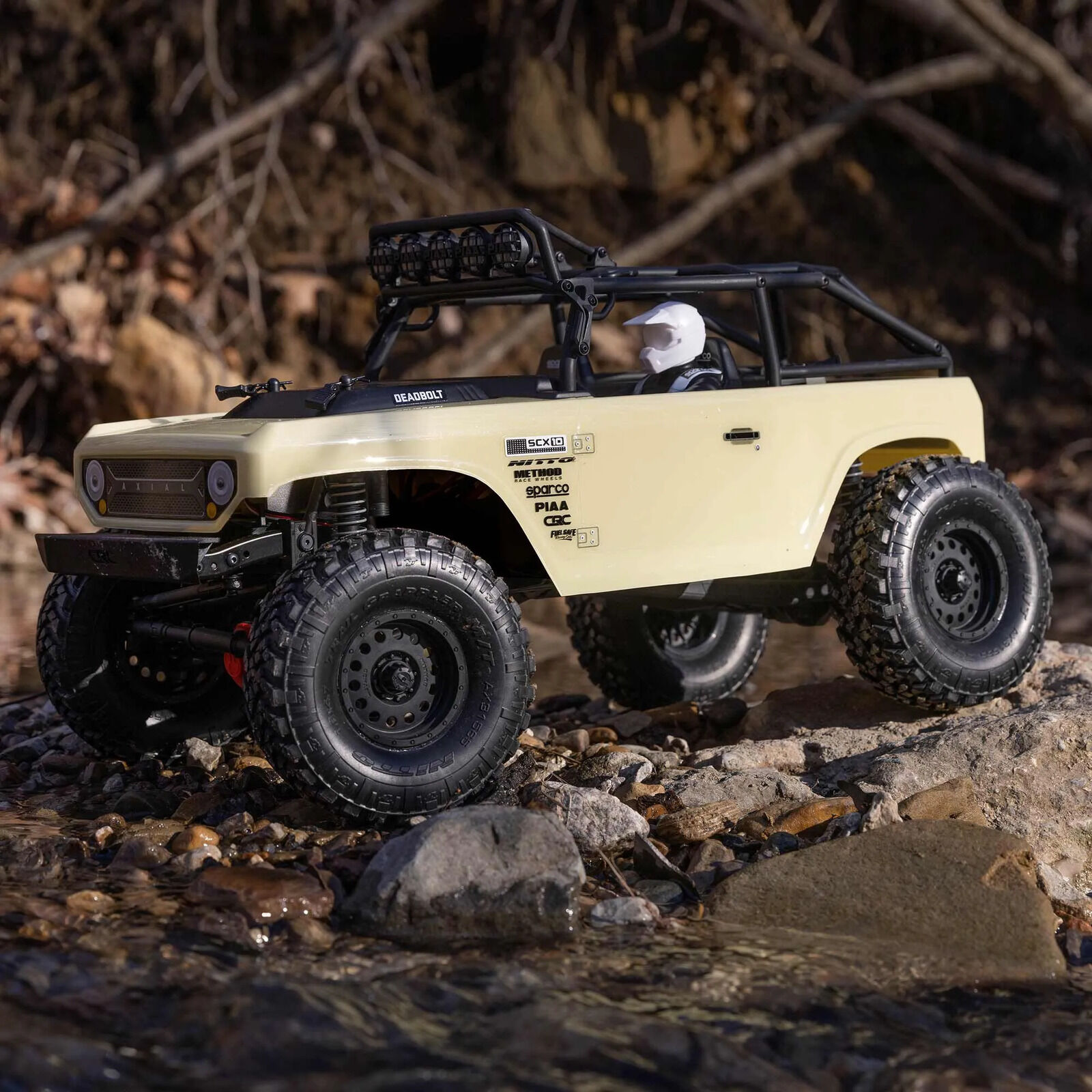

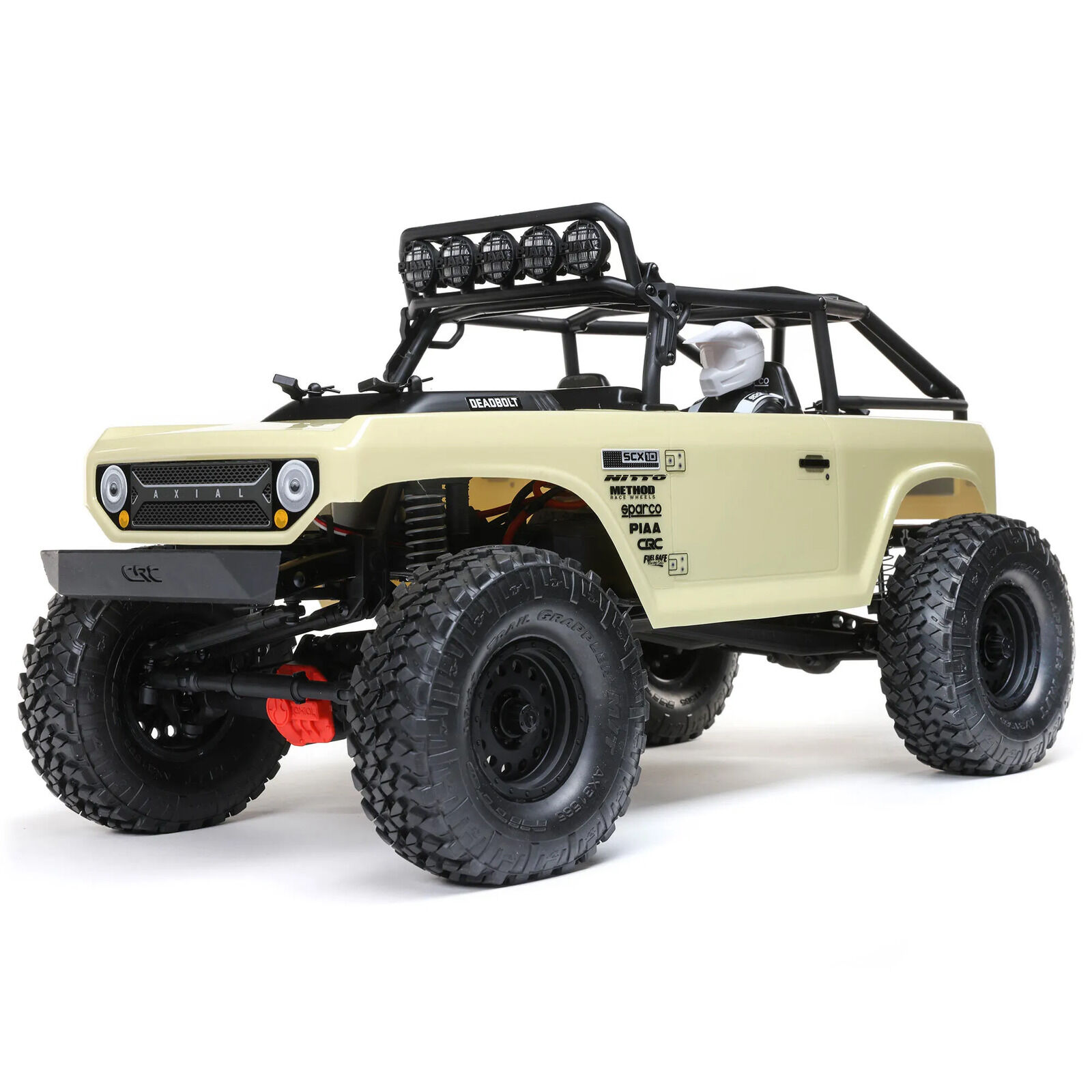

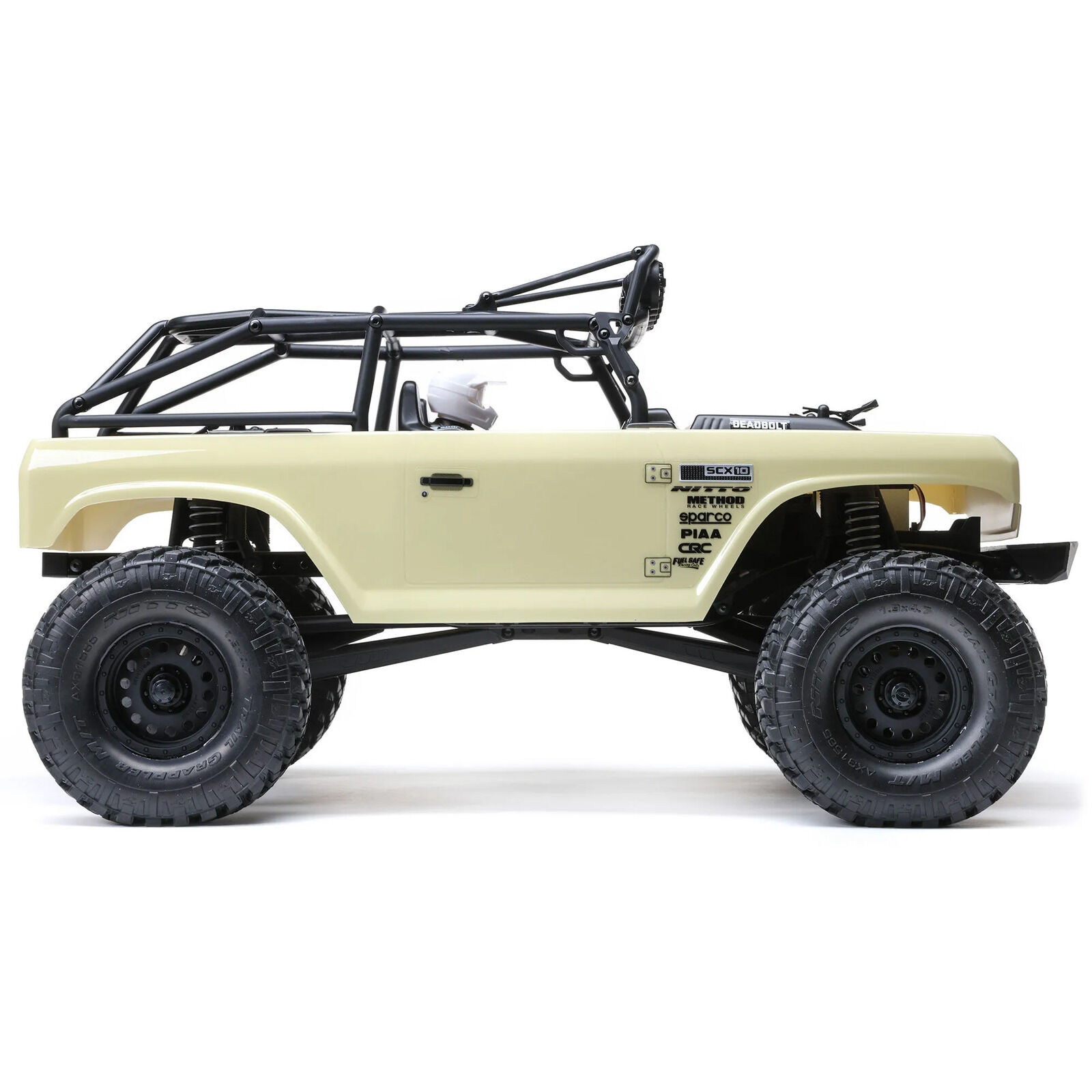

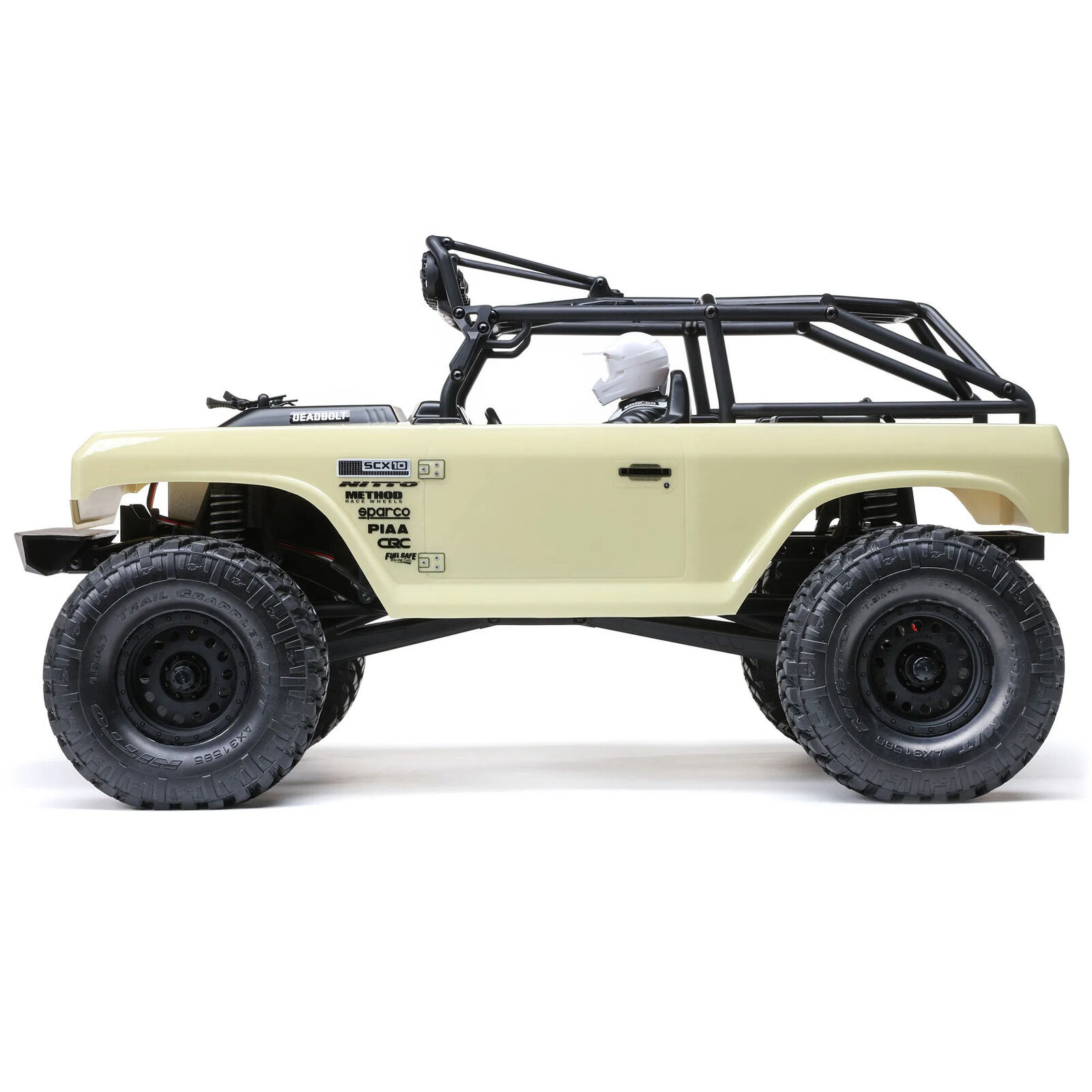

Axial SCX10 II Deadbolt RC Crawler, RTR, Sand - AXI03025T2

Perfect for cost-conscious crawling enthusiasts, the SCX10™ III Base Camp™ 4WD RTR delivers high performance in a lean and classic design that still offers plenty of scale realism. It's the most bang for your buck available in a 1/10 scale Axial rig! Whether you are a seasoned R/C rock crawling veteran, or you are brand new to the hobby, the SCX10 III Base Camp platform will be your go to rig. Conquer the trails right out of the box, ready for your next scale performance driven creation!

Features

  • Realistic, durable steel C-channel chassis with cross braces for reinforcement and rigidity
  • Single-piece AR44 front and rear axles with molded truss for extreme durability
  • High pinion design that adds ground clearance, improves driveshaft angles, and increases gear surface contact
  • LCX AX10 transmission with adjustable gearing ratio for super high speed or competition-level crawling speed
  • Universal joint axles allowing up to 45° of steering and providing an efficient, high-performance drivetrain
  • Optimized gear ratio of 3.75 that reduces torque twist
  • Hypoid-cut CNC metal gears
  • Larger load rated bearings for durability
  • 8° Kingpin axle that eliminates tire scrub
  • 10° Increment adjustments for knuckle carriers and straight axle adapters
  • Chassis mounted servo with adjustable servo mounting system
  • Oil-filled, coilover shocks with threaded shock bodies
  • Licensed CRC front bumper
  • 3-piece WB8 HD Wildboar front and rear driveshafts with strengthened slider-floater tube to reduce flex and fatigue
  • Easy-access, water-resistant receiver box

Product Information

The ready-to-run Axial SCX10â„¢ II Deadboltâ„¢ 4WD is a budget-friendly, highly capable, and easily upgradeable RC rock crawler that's perfectly suited for both experienced adventurers and hobby newcomers. It combines rugged scale looks with the exceptional handling of the trail-ready SCX10 II chassis, in a 12" short wheelbase setup that's agile enough to take on twisty trails.

The SCX10 II remains one of the best 1/10 scale rock crawler chassis ever designed. This high-strength, C-channel chassis is made of durable steel with cross braces for reinforcement and rigidity. The contoured skid plate significantly reduces hang-ups, and the simplified design makes maintenance quick and easy.

Highly adaptable, the SCX10 II Deadbolt 4WD also features an adjustable wheelbase, adjustable body mount, adjustable bumper mounts with swaybar mounting points, and mounting points for an optional 2-speed transmission and servo winch. The included LCX AX10â„¢ transmission, with a three gear layout, heavy-duty slipper, sealed gear cover, and all-metal gears, accepts a wide range of gearing options. Its overall ratio can be adjusted using different pinion and spur gear choices for super high speed or competition-level crawling speed.

Just as a full-size truck has its steering box located on the frame, Axial places the Deadbolt's adjustable servo mount on the SCX10 II chassis frame and allows a wide range of servos to be used. Universal joint axles permit up to 45° of steering and provide an efficient, high-performance drivetrain. The single-piece AR44â„¢ front and rear axles feature a molded truss for extreme durability. The pinion gear is 6mm above center for higher ground clearance and improved driveshaft angles. Metal dog bones and helical cut internal gears are standard equipment, and the drivetrain includes full, high-quality ball bearings.

The oil-filled shocks, with threaded bodies and a single coilover spring, can be tuned to meet the dampening demands of any trail. Realistic shock hoops with multiple mounting positions let you adjust the suspension for maximum performance. S30 compound, 4.7" x 1.9" wide Nitto Trail Grappler M/T tires on METHOD 307 Hole wheels provide ample ground clearance for off-road trails and have a large block tread pattern for excellent bite in all terrain.

With a realistic driver figure and exterior cage complete with light bar (LED lights sold separately), the Axial SCX10 II Deadbolt 4WD delivers scale excitement and class-leading performance in a convenient, ready-to-run package. Nearly all electronics, including a Spektrumâ„¢ SLT2 2.4GHz radio system, motor, and ESC, are supplied and installed. Just add your choice of batteries and charger and start your adventure!

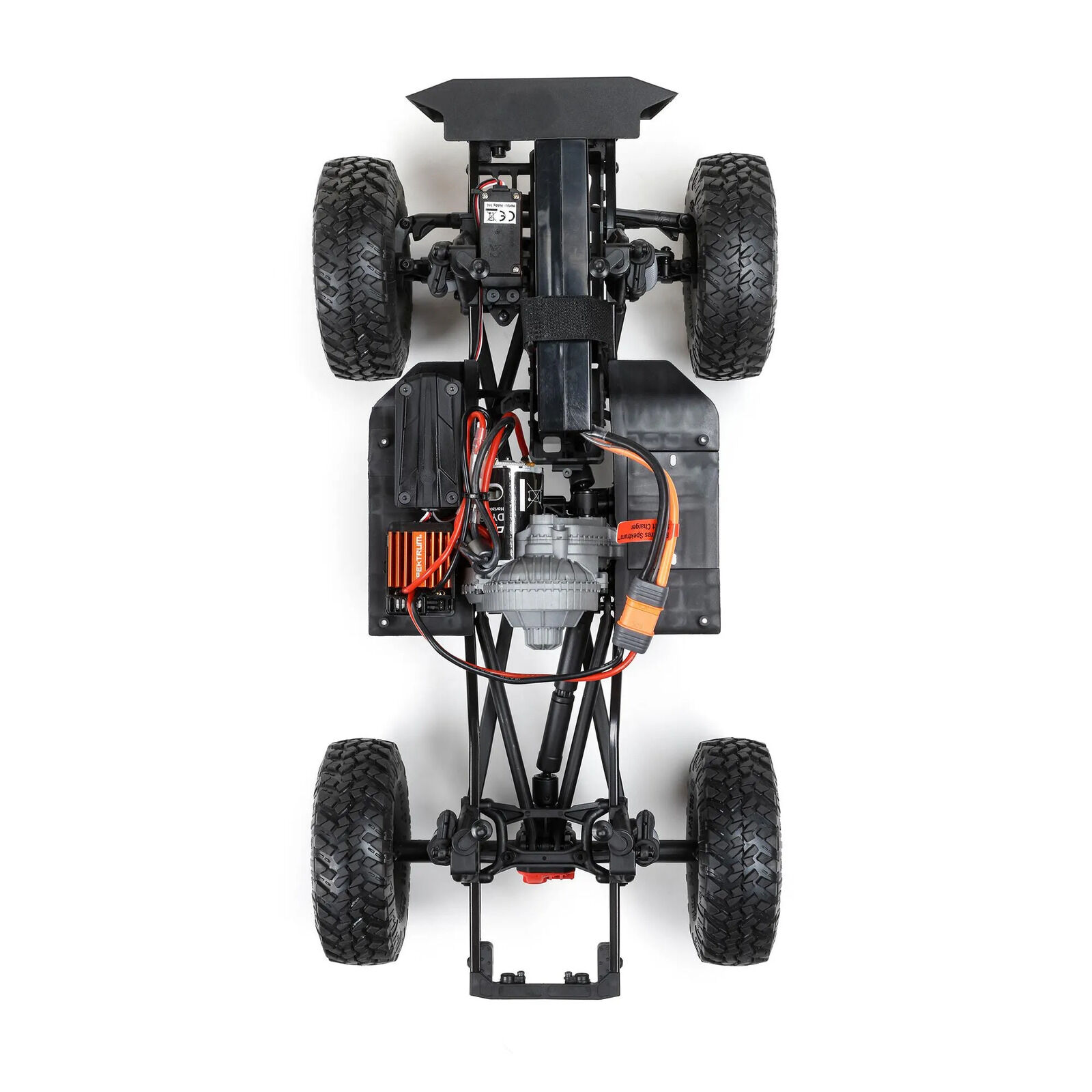

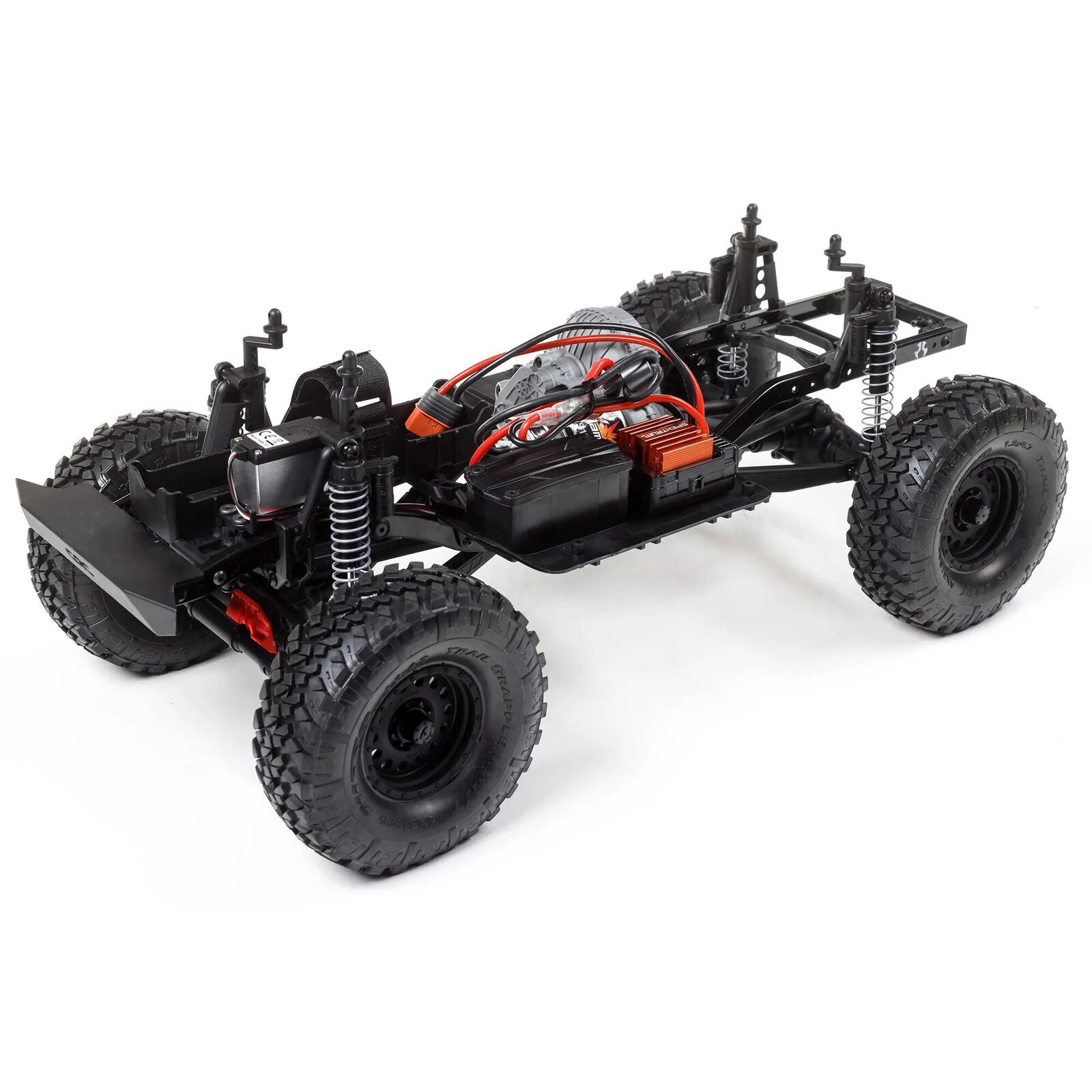

STEEL C-CHANNEL FRAME RAIL CHASSIS

The realistic, high-strength SCX10â„¢ II C-channel chassis is made of durable steel with cross braces for reinforcement and rigidity. The contoured skid plate significantly reduces hang-ups, and the simplified design makes maintenance quick and easy. There's also an adjustable body mount, adjustable bumper mounts with swaybar mounting points, and mounting points for an optional 2-speed transmission and servo winch.

ADJUSTABLE WHEELBASE

The Deadbolt SCX10 II chassis is designed at a 12.0" wheelbase length but is easily adjusted to either a 11.4" or 12.3" wheelbase (optional link kits sold separately). Axial designed the chassis so that all the wheelbase adjustability happens out back without sacrificing front-end suspension geometry. Simple removal and installation of the suspension links and changing the drive shaft length allows an easier way to adjust the wheelbase.

LCX AX10â„¢ TRANSMISSION

The proven LCX AX10 transmission features a three gear layout, heavy-duty slipper, sealed gear cover, and all-metal gears. It accepts a wide range of gearing options. The overall ratio can be adjusted using different pinion and spur gear choices, allowing super high speed or competition-level crawling speed.

4-LINK REAR SUSPENSION

The suspension geometry utilizes a 4-link design for the rear which is optimized to reduce axle steer and torque twist. It also helps with steep off-camber climbs by having the proper amount of anti-squat and roll characteristics.

WB8 HD WILDBOARâ„¢ DRIVESHAFTS

WB8 HD Wildboarâ„¢ front and rear driveshafts have a larger diameter cross pin (2x11mm) along with an M4 screw shaft (2mm hex drive) for added strength. A center splined slider floats between each end and features added material to reduce flex and fatigue.

AR44â„¢ HIGH PINION AXLE

Single-piece AR44 front and rear axles feature a molded truss for extreme durability. The pinion gear is 6mm above center, increasing ground clearance and improving driveshaft angles. Metal dog bones and helical cut internal gears are standard equipment, and the drivetrain includes full, high-quality ball bearings.

CHASSIS MOUNTED SERVO

Just as a full-size truck has its steering box located on the frame, Axial places the servo mounting location on the chassis. The adjustable servo mounting system allows a wide range of servos to be used.

ADJUSTABLE COILOVER SHOCKS

The oil-filled shocks have threaded bodies and a single coilover spring. The dampening rate can be tuned to meet the demands of the trail. Realistic shock hoops with multiple mounting positions let you adjust your suspension for maximum performance.

METHOD 307 HOLE 1.9" WHEELS

Officially licensed METHOD 307 Hole 1.9" Wheels offer durability and clean looks. The Hole features a simulated beadlock ring using a strategically placed under-cut on the wheel's outer lip.

NITTO TRAIL GRAPPLER M/T 1.9" TIRES

The S30 compound, 4.7" (119.4mm) x 1.9" (48.2mm) wide Nitto Trail Grappler M/T tires included with the SCX10 II Deadbolt provide ample ground clearance for off-road trails. The large block tread offers excellent bite in all terrain.

WATER-RESISTANT RECEIVER BOX

Located on the side plates, the receiver box allows easy access and lowers the center of gravity. Three silicone seals are included: one for the antenna, one for the servo wires (includes three slots for three channels), and one that acts as a gasket for the receiver box cover.

SPEKTRUMâ„¢ 40A BRUSHED ESC WITH IC3 CONNECTOR

The Spektrumâ„¢ 40A Brushed ESC (SPMXSE1040) is 2-3S LiPo capable, yet easily switched "in the field" between LiPo and NiMH battery types.

  • 40 Amp Rated

  • 2-3S LiPo Compatible

  • 5-9 Cell NiMH/NiCd Compatible

  • Forward/Reverse

  • Adjustable Drag Brakes

SPEKTRUMâ„¢ SLT2 TRANSMITTER

The SLT2 2-channel radio system offers many features of higher-end 2.4GHz radio systems like throttle/steering travel adjust and throttle limiting.

  • Built-in 3-position throttle limiter

  • Steering and throttle rate and trim adjustments with steering reversing

  • FHSS 2.4GHz protocol offers extended range and interference-free performance

  • AA batteries included

SPEKTRUMâ„¢ S614 SERVO

The Spektrum S614 servo offers 201 oz-in of steering torque and metal gears for strength. It's waterproof for extra protection against the elements.

SPEKTRUMâ„¢ SLR300 SLTâ„¢ RECEIVER

The included SLR300 3-channel receiver features interference-resistant SLT FHSS 2.4GHz technology and channels for throttle, steering, and auxiliary functions. Its bind port can also be used to power devices like fans, lights, or a lap sensor.

WHAT'S IN THE BOX?

  • Axial SCX10â„¢ II Deadboltâ„¢ 1/10 Scale 4WD RTR

  • Spektrumâ„¢ SLT2 2.4GHz Radio System

  • Dynamite 35-Turn 540 Brushed Motor

  • Spektrum 40A Brushed ESC with IC3Â Connector

  • Spektrum SLR300 3-Channel SLTâ„¢ FHSS 2.4GHz Receiver

  • Spektrum S614 Waterproof Metal Gear Surface Servo, 23T

  • Product Manual

  • (4) AA Transmitter Batteries

What you need

  • (1) Vehicle Battery
  • (1) Compatible Battery Charger

Specs

  • Power Type: Electric
  • Gear Pitch: 32P
  • Servos: Included
  • Completion Level: Ready-To-Run
  • Drivetrain: 4WD
  • Drive Type: Forward/Brake/Reverse
  • Product Height: 9" (229 mm)
  • Battery: Sold Separately
  • Connector Type: IC3
  • Ground Clearance: 2.7 in (68mm)
  • Motor Size: 540
  • Steering Type: 2WS
  • Product Length: 18.1" (460 mm)
  • Spur Gear 56T
  • Final Drive Ratio: 40.44:1
  • Motor Type: Brushed
  • Rear Track: 7.5 in (190.5mm)
  • Speed Contro:l Included
  • Approximate Assembly Time: Less than 1 Hour
  • Brakes: Integral with ESC
  • Pinion: 14T
  • Scale: 1/10
  • Front Track: 7.5 in (190.5mm)
  • Product Width: 8.8" (224 mm)
  • Radio: Included
  • Charger: Sold Separately
  • Differential: Locked
  • Receiver: Included
  • Shock Type: Oil Filled
  • Product Weight: 4.65 lb (2.1 kg)
  • Vehicle Type: Rock Crawler
  • Water-Resistant: Yes
